Overview

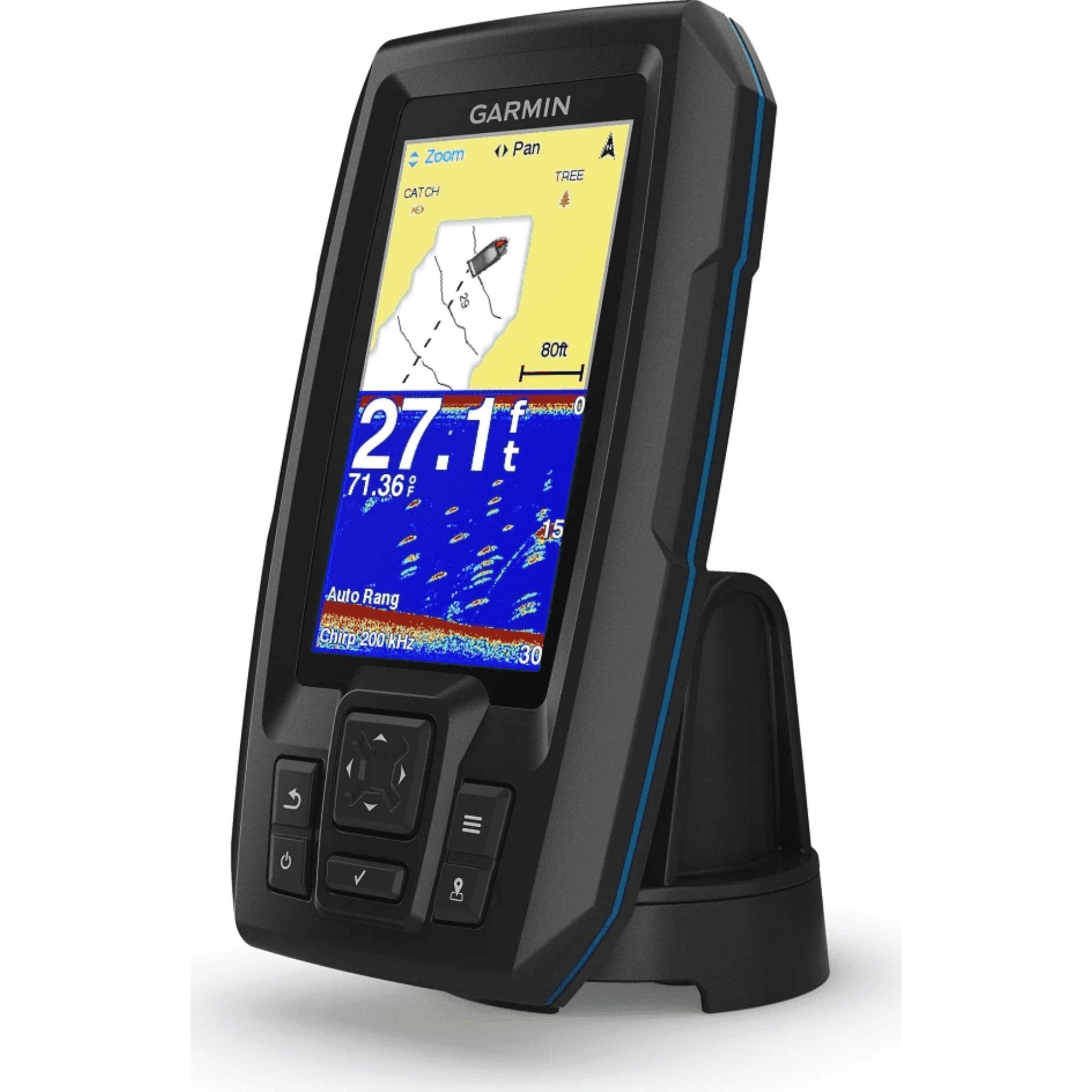

The STRIKER™ Plus 4 fishfinder with a bright 4.3” display and built-in GPS features CHIRP sonar for crystal-clear images and Quickdraw Contours map drawing software, which stores up to 2 million acres of content with 1-foot contours. The built-in GPS lets you mark and navigate to waypoints and shows your boat’s speed.

Garmin Quickdraw Contours

Nobody knows the waters you fish better than you and your fellow fishermen. While you are trolling the shorelines and the depths, Quickdraw Contours mapping software creates HD fishing maps of the places you’ve been. No special knowledge is required. STRIKER™ Plus 4 can now store up to 2 million acres of your Quickdraw Contours maps with 1-foot contours.

CHIRP Sonar Clarity

The STRIKER™ Plus 4 fishfinder includes Garmin CHIRP technology for a higher level of clarity and detail that you have come to expect from Garmin. Crystal-clear sonar images provide remarkable target separation and resolution in shallow and deeper water. Bottom contours are more visible, even at higher speeds, and signal noise can be suppressed at greater depths for a timely interpretation of what’s below.

GPS Fishfinder

The built-in, high-sensitivity GPS finds and maintains your position anywhere you go on the water. The GPS allows you to mark waypoints for different locations. So, if the fish are biting in one spot, you can mark it, and return to it on your next trip. Mark docks, boat ramps and other locations on the lake, and create routes back to them for your next trip. GPS also allows STRIKER™ Plus 4 to show your speed on screen, so you can be sure you’re trolling at the right speed for the lure you’re using or in wake-controlled areas.

Built for You

The STRIKER™ Plus 4 fishfinder makes fishing a breeze, and it’s built to work in any environment. The bright, sunlight-readable display gives you a clear view of what is below your boat, even on the brightest days. And the larger screen gives you a better view of what is happening below the boat. The intuitive user interface makes it simple to navigate to whatever feature you need, so you are ready for anything on the water.

Product Specifications

Physical & Performance

Display resolution	272 x 480 pixels
Display size	4.3"
Physical dimensions	9.8 x 17.4 x 4.5 cm
Water rating	IPX7
Weight	0.3 kg
Display type	QSVGA

Features

Fish Symbol ID (helps identify fish targets)	Yes
Transmit power	200 W (RMS)
Water temperature log and graph	Yes
Audible alarms	Yes
AutoGain Technology (minimises clutter, maximises targets)	Yes
Dual-beam (77/200 kHz) sonar capable	Yes
Additional	Integrated GPS Mark Waypoints Course over Ground (COG) Current draw @ 12V: 0.23A
Water temperature sensor included	Yes
productSpecMisc	*Depth capacity is dependent on water bottom type and other water conditions.
Split-screen zoom	Yes
A-scope (real time display of fish passing through transducer beam)	Yes
Adjustable depth line (measures depth of underwater objects)	Yes
Dual-frequency (50/200 kHz) sonar capable	Yes
Bottom lock (shows return from the bottom up)	Yes
Frequencies supported	Traditional: 50/77/200 kHz
Ultrascroll® (displays fish targets at higher boat speeds)	Yes
Voltage range	10-20 Vdc input

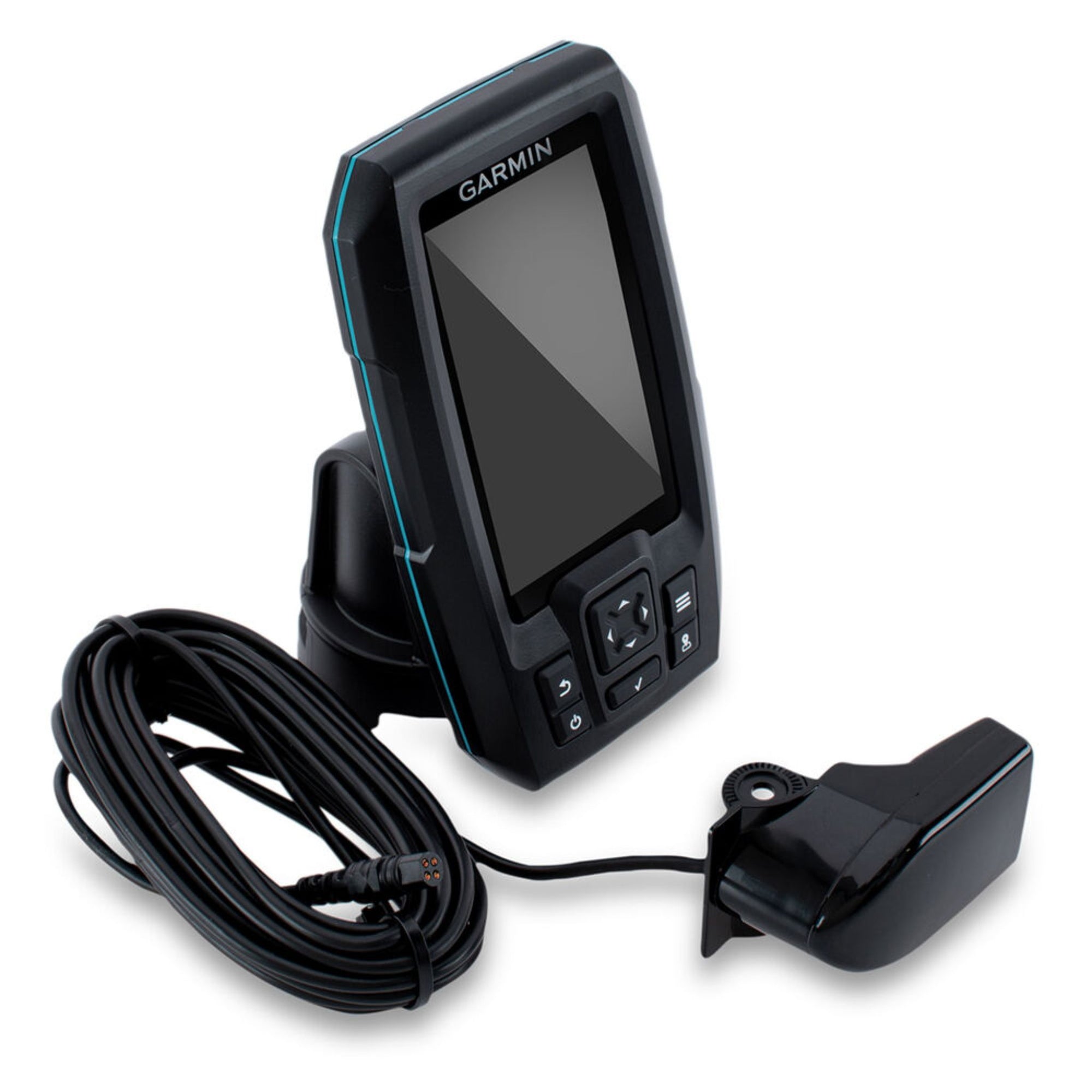

In the Box

STRIKER™ Plus 4 fishfinder
Garmin dual-beam transducer
Power/data cable
Tilt/swivel mount
Hardware
Garmin bumper sticker
Documentation
